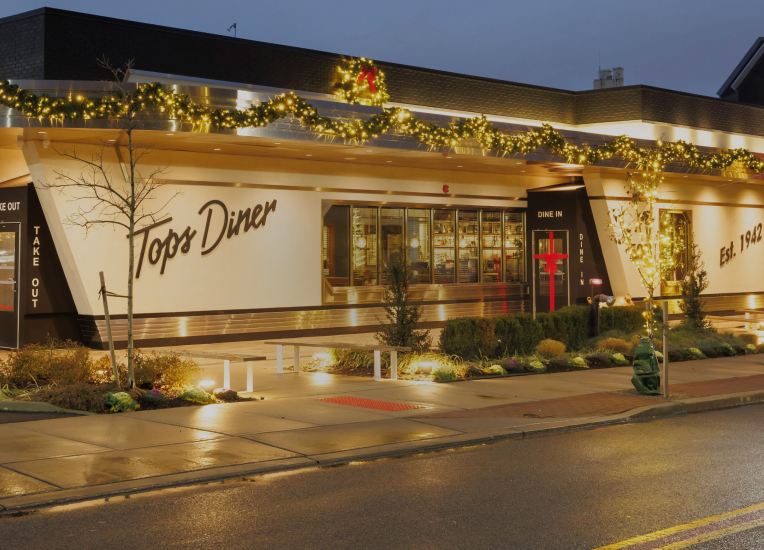

The Facade Framework: Direction, Intensity, Color
From Design by Application: In our Definitive Guide to Lighting by Location, we introduced facade lighting. This article explores the framework for controlling facade effects.
Three Variables, Infinite Combinations
Every facade lighting effect you can produce comes down to three variables: the direction the light comes from, the intensity of the light, and the color of the light. Master these three variables and you can create any effect a client requests — from subtle architectural wash to bold holiday statement.
This is not theory for its own sake. Understanding these variables means you can diagnose why a facade does not look right and adjust one variable at a time until it does. It means you can stand at the curb with a client during the design walk-through and explain exactly what effect a given setup will produce before you install a single fixture.
Variable 1: Direction
Direction is the most powerful variable. The same fixture, same intensity, same color will produce completely different effects depending on where it is placed relative to the facade.
Front Lighting (Direct)
The fixture is positioned in front of the facade, aimed directly at the surface. This is the most common approach — a flood light sitting in the garden bed 6-10 feet from the house, aimed upward at the facade.
Effect: Even illumination across the surface. Texture is minimized because light fills every crevice and shadow. The facade reads as a flat, glowing plane.
When to use: When you want broad coverage, when the facade surface is smooth and featureless, when the goal is color wash (bathing the house in red, green, or blue).
Watch out for: Front lighting makes windows look like dark holes. The bright facade surface surrounding a dark, unlit window creates an unflattering contrast. Either light the windows from inside or accept the dark-window effect.
Side Lighting (Cross Lighting)
The fixture is positioned to one side of the facade surface, aimed across the face at a shallow angle. Think of a fixture at the corner of the house, aimed along the front wall.
Effect: Strong directional shadows. Texture is maximized because light hits one side of every raised surface and leaves the other side in shadow. Brick joints pop. Stone faces gain depth. Architectural trim becomes three-dimensional.
When to use: When the facade has significant texture (brick, stone, rough stucco) and you want to show it. When you want drama and depth rather than even coverage.
Watch out for: Side lighting can be harsh. It emphasizes imperfections — uneven mortar joints, stucco cracks, warped siding — as dramatically as it emphasizes beautiful texture. Evaluate the surface quality before committing to side lighting.
Up Lighting
The fixture is at ground level, aimed upward along the facade surface. This is grazing in the vertical direction — the light rakes upward across the surface.
Effect: Dramatic, theatrical illumination. Shadows project upward, which is the reverse of natural sunlight and creates visual interest. Tall elements (columns, chimneys, dormers) are emphasized.
When to use: When the facade has strong vertical elements. When you want to draw the eye upward toward the roofline. When combining with roofline lighting to create a unified vertical composition.
Watch out for: Uplighting alone, without any complementary downlighting or ambient light, can look unnatural. Balance uplight with at least some ambient fill to prevent the "horror movie" effect.
Down Lighting
The fixture is mounted above the facade surface (on the eave, soffit, or porch ceiling), aimed downward. This mimics natural light direction and produces the most natural-looking facade illumination.
Effect: Soft, natural wash. Shadows project downward, which is familiar and comfortable to the eye. The facade looks like it is lit by moonlight or ambient overhead light.
When to use: When the goal is a warm, welcoming look. When the entry needs overhead illumination. When the client wants subtle rather than dramatic.
Watch out for: Downlighting from eaves requires fixture mounting at height, which adds installation complexity. The fixtures must be well-aimed to avoid light spilling into windows.
Variable 2: Intensity
Intensity controls the visual weight of the facade in the overall composition. A brightly lit facade dominates the scene. A softly lit facade recedes behind brighter elements (roofline, trees).
Measuring Intensity in Practice
You do not need a light meter in the field. Intensity is relative — what matters is the relationship between the facade brightness and the brightness of surrounding elements.
High intensity (facade as focal point): The facade is the brightest element in the design. Roofline and landscaping are secondary. Use this when the architecture is the main attraction — a stunning stone facade, an impressive colonial front, a dramatic modern design.
Medium intensity (facade as supporting element): The facade is lit but not dominant. It fills the space between the roofline and the ground plane without competing with either. This is the most common approach for holiday lighting where the roofline is the star.
Low intensity (facade as backdrop): The facade receives just enough light to prevent it from being a dark void. Trees, roofline, and entry features carry the design. Use this when the landscaping is the main event or when the facade surface is unremarkable.
Controlling Intensity
- Fixture wattage: Lower wattage produces less light. Simple and effective.
- Distance: Moving the fixture farther from the facade reduces intensity (inverse square law — doubling the distance quarters the intensity).
- Beam angle: A wider beam spreads the same lumens over a larger area, reducing intensity at any given point. A narrower beam concentrates light for higher intensity on a smaller area.
- Dimming: If using dimmable fixtures, you can dial intensity precisely. This is the most flexible option but requires dimmable-compatible product.
Variable 3: Color
Color creates mood. In holiday lighting, color selection for the facade is one of the highest-impact decisions you make.
Warm White (2700K-3000K)
The default for architectural and holiday facade lighting. Warm white communicates elegance, warmth, and welcome. It complements virtually every exterior material — brick, stone, wood, stucco, siding. If you are uncertain, warm white is always safe.
Pure White (4000K)
Brighter and cleaner than warm white, pure white works on contemporary homes and commercial facades. It can make a white-painted facade glow cleanly without the yellow cast of warm white.
Cool White (5000K-6500K)
Cool white creates an icy, modern, or wintry effect. Deliberate use of cool white on selected elements (a single tree, a frosted window display) can be effective. Cool white on an entire facade tends to feel cold and uninviting for residential properties.
Single Saturated Colors
Red, green, blue, amber, and purple floods on a facade create bold holiday statements. They work best on neutral-colored facades (white, cream, gray) where the color reads cleanly. On colored facades (red brick, brown stone), the interaction between the light color and the surface color can produce unexpected and often unflattering results.
Color-on-surface interactions to know:
- Red light on red brick: Intensifies the red, can look monochromatic and lose detail
- Green light on red brick: Creates a muddy brown effect
- Blue light on warm-toned surfaces: Can look clinical or eerie
- Warm white on any surface: Almost always flattering
Color Transitions and RGB
RGB LED floods allow color changing and programmable scenes. For facade applications, slow color transitions (fading between red and green over 30-60 seconds) are elegant. Fast color cycling or rainbow effects are attention-getting but typically unsuitable for residential holiday displays unless the client specifically requests a "light show" effect.
Combining the Three Variables
The art of facade lighting is in the combination. Here are three common professional recipes:
Recipe 1: Classic Holiday Elegance
- Direction: Front lighting from ground level, 8 feet from facade
- Intensity: Medium (supporting the roofline)
- Color: Warm white
- Result: The facade glows softly, the roofline pops, the entry is the brightest point
Recipe 2: Architectural Drama
- Direction: Side lighting and uplighting from close range (18-24 inches from facade)
- Intensity: High on selected features (chimney, columns), low elsewhere
- Color: Warm white
- Result: Dramatic shadows, visible texture, the architecture is the star
Recipe 3: Bold Color Statement
- Direction: Front lighting from ground level, 6-8 feet from facade
- Intensity: High (facade is the focal point)
- Color: Single saturated color (red on white house, blue for "frozen" effect)
- Result: The entire facade becomes a color canvas, roofline provides white contrast
Key Takeaways
- Direction is the most powerful variable — it determines whether texture is revealed or hidden, whether the facade feels natural or dramatic
- Intensity establishes the facade's role in the overall composition — decide whether the facade leads, supports, or recedes
- Color sets mood — warm white is the safe default, saturated colors are bold statements that require careful surface matching
- Every facade effect is a combination of these three variables — adjust one at a time to diagnose problems or refine a look
- Test from the viewing position, not from the installation position — the effect at the street is what matters
What's Next
One key decision in facade lighting is flood vs graze. These two approaches create completely different effects.
Next: Flood vs Graze: Two Approaches to Architectural Lighting
