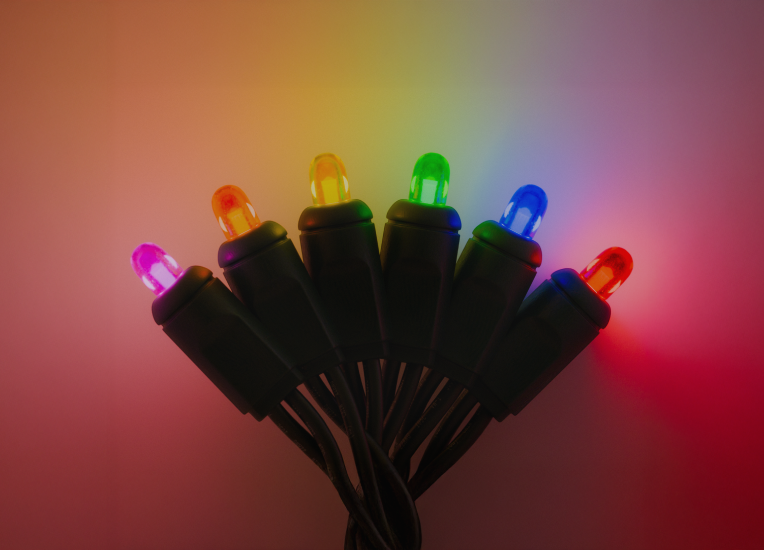

Wattage Reference Guide: Every Bulb Type's Power Draw

From Technical Excellence: In our Definitive Guide to Installation Techniques, we introduced electrical fundamentals. This article provides complete wattage reference.

Why You Need This Reference

Every load calculation starts with the same question: how many watts does this product draw? If you guess, you build risk into the installation. If you look it up, you build certainty. This reference covers every common bulb type used in professional holiday lighting, with pre-calculated maximum bulb counts per circuit so you can make decisions in the field without pulling out a calculator.

Keep this page bookmarked or print the tables for your truck binder. The numbers do not change between jobs — the math is the math.

Complete Bulb Wattage Table

Incandescent

LED (SMD)

Specialty LED Products

RGB Pixel Products

Critical: Always calculate pixel loads at maximum wattage, not average. When the display shows all-white at full brightness, every pixel draws maximum current simultaneously. Calculating at average wattage will result in power supply overload during white scenes.

The LED vs. Incandescent Capacity Comparison

The numbers tell the story:

C9 bulbs on a single 15-amp circuit:

• Incandescent: 205 bulbs maximum
• LED: 2,482 bulbs maximum
• LED provides 12x more capacity

Mini lights on a single 15-amp circuit:

• Incandescent: 3,512 bulbs maximum
• LED: 20,571 bulbs maximum
• LED provides 5.8x more capacity

In practical terms, this means most all-LED residential installations can run comfortably on a single 15-amp exterior circuit. The capacity constraint only re-emerges on large commercial installations, pixel-heavy displays, or properties where you are still working with incandescent product.

Quick Calculation Shortcuts

For field estimates without a calculator, memorize these round numbers:

C9 LED (0.58W):

• 100 bulbs = ~58W = ~0.5A
• 200 bulbs = ~116W = ~1.0A
• 500 bulbs = ~290W = ~2.4A
• 1,000 bulbs = ~580W = ~4.8A

C7 LED (0.45W):

• 100 bulbs = ~45W = ~0.4A
• 200 bulbs = ~90W = ~0.75A
• 500 bulbs = ~225W = ~1.9A
• 1,000 bulbs = ~450W = ~3.8A

Mini LED (0.07W):

• 1,000 bulbs = ~70W = ~0.6A
• 5,000 bulbs = ~350W = ~2.9A
• 10,000 bulbs = ~700W = ~5.8A

Rule of thumb: For C9 LED, every 100 bulbs draws about half an amp. For mini LED, every 1,000 bulbs draws about half an amp. These approximations are close enough for on-site decisions and sanity checks.

String Configuration Impact

Manufacturers specify wattage per bulb, but you purchase and install by the string. Know your string math:

C9 LED, 25-bulb strings:

• Per string: 25 x 0.58W = 14.5W
• 10 strings = 145W = 1.2A
• 50 strings = 725W = 6.0A

C9 LED, 50-bulb strings:

• Per string: 50 x 0.58W = 29W
• 10 strings = 290W = 2.4A
• 50 strings = 1,450W = 12.1A (at 80% limit on 15A circuit)

Mini LED, 100-count strings:

• Per string: 100 x 0.07W = 7W
• 10 strings = 70W = 0.6A
• 50 strings = 350W = 2.9A

When quoting a job, always convert from strings to total bulbs to total watts. "10 strings" is meaningless without knowing the bulb count per string and the bulb wattage.

Wattage Variability by Manufacturer

Not all C9 LEDs are created equal. The wattage per bulb varies by manufacturer, LED chip quality, and driver design:

• Budget import LEDs: 0.45-0.50W per bulb
• Mid-grade commercial LEDs: 0.55-0.65W per bulb
• Premium commercial LEDs: 0.70-0.80W per bulb

The premium bulbs draw more power because they produce more light output. They are not inefficient — they are brighter. When calculating load, use the specific wattage from your supplier's spec sheet. If the spec sheet is unavailable, use the higher end of the range for your product tier. Overestimating wattage gives you a safety margin; underestimating creates a potential overload.

Retrofit Scenario: The Upsell Math

When converting a client from incandescent to LED, the freed capacity becomes a sales tool.

Before (incandescent C9):

• 200 bulbs at 7.0W each = 1,400W = 11.7A
• Nearly maxed out on a 15-amp circuit (97% of 80% limit)

After (LED C9):

• 200 bulbs at 0.58W each = 116W = 0.97A
• 1,324W of capacity freed up

The conversation: "By converting to LED, we free up enough capacity on your existing circuit to add tree wraps, shrub nets, and an entry garland — without adding any electrical work. Same circuit, dramatically more display."

This is not upselling for the sake of revenue. It is demonstrating the technical advantage of the upgrade in terms the client can visualize and appreciate.

Accessory Wattage: Do Not Forget

Controllers, timers, and transformers draw power too. Include them in every calculation:

A pixel controller running 16 channels of addressable LEDs can draw 25-30W by itself. On a large installation with 4-5 controllers, that is 100-150W of overhead before a single pixel illuminates.

Common Calculation Mistakes

Mistake 1: Using average wattage for pixel products. A pixel rated at 0.3W average draws 0.6W at full white. An all-white scene on 2,000 pixels draws 1,200W — not 600W. Your power supply and circuit capacity must support the maximum, not the average.

Mistake 2: Forgetting accessories. Timers, controllers, and transformers consume power. On large installations, this overhead is significant.

Mistake 3: Quoting by strings without knowing bulb count. "20 strings of C9" could mean 500 bulbs (25-count strings) or 2,000 bulbs (100-count strings). Always convert to total bulb count first.

Mistake 4: Assuming the spec sheet is exact. Manufacturing tolerances mean real-world wattage can be 5-10% higher than the spec sheet value. Always calculate with a margin.

Key Takeaways

• LED capacity advantage: C9 LED (0.58W) allows 2,482 bulbs per 15A circuit vs. C9 incandescent (7W) at only 205 bulbs = 12x more capacity
• Quick shortcuts: 100 C9 LEDs = ~0.5A; 1,000 mini LEDs = ~0.6A for mental math estimates
• RGB pixel wattage: Always calculate for maximum (0.6W for 5V, 0.8W for 12V), not average — all-white scenes hit max
• Retrofit upsell: Converting 200 incandescent C9 to LED frees 1,324W of capacity = room for 2,000+ additional LED bulbs
• Include accessories: Controllers (10-30W) and transformers (5-10% loss) add to total load calculation

What's Next

With electrical calculations mastered, the operational side shifts to client experience — starting with commercial proposal structures.

Next: Commercial Proposals: Structuring Multi-Year Agreements
