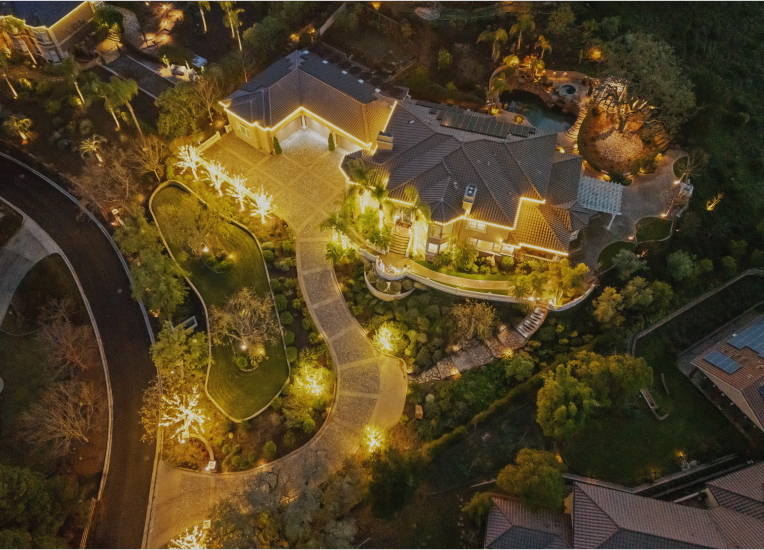

What Fails First: Weak Points in Holiday Lighting
From Product Knowledge: In our Definitive Guide to Professional Lighting Products, we covered equipment quality. This article identifies the weak points that typically fail first in holiday lighting systems.
The Failure Hierarchy
After thousands of installations and years of service data, the failure pattern in professional holiday lighting is remarkably consistent. The LED chip is almost never the first thing to fail. Everything around it fails first, in a predictable order.
Understanding this hierarchy changes how you buy, install, and maintain your equipment. It tells you where to invest in quality, where to focus your pre-season inspections, and what to carry on your truck for mid-season repairs.
#1: Connectors and Plug Connections
Connectors fail first. Every time. This is the single most common failure point in professional holiday lighting, and it accounts for more callbacks than all other failure modes combined.
Why connectors fail:
The male-to-female plug connection between strings is exposed to rain, snow, ice, and temperature cycling. Water wicks into the connection through capillary action even when the plugs appear fully seated. Once moisture is present, several processes begin:
- Oxidation. Copper and brass contacts develop a thin oxide layer that increases resistance. Higher resistance means more heat at the connection, which accelerates further oxidation.
- Galvanic corrosion. If dissimilar metals are present (brass pins in a copper socket, or tin-plated contacts against bare copper), moisture creates an electrolytic cell that actively corrodes the less noble metal.
- Arc erosion. As contacts corrode and resistance increases, small arcs can form when the connection vibrates in wind. Each arc removes a tiny amount of material and increases the gap, creating more arcing.
What you see: Intermittent operation (lights work sometimes, not others), a section of the display going dark, or -- in the worst case -- a connector that is warm or discolored from excessive resistance heating.
Prevention:
- Use dielectric grease on all male connector pins before mating. A thin film blocks moisture without insulating the electrical contact.
- Wrap every connection with electrical tape, overlapping past the connection point by at least 1 inch on each side.
- For critical connections, use heat-shrink weatherproof connector covers.
- Elevate connections off the ground or roof surface. A connection sitting in a puddle or under accumulated snow will fail faster than one hanging in free air.
- Use GFCI-protected circuits. If a connection fails badly enough to create a ground fault, the GFCI trips before anything dangerous happens.
#2: Wire and Jacketing Damage
The second most common failure is physical damage to wire and jacketing, primarily from installation and removal handling.
Where damage happens:
- Staple points. If anyone on your crew uses staples instead of clips, the staple can pierce or compress the wire jacket, creating a point of moisture intrusion and eventual conductor damage.
- Sharp edges. Running wire across aluminum drip edge, sheet metal flashing, or rough shingle edges cuts into the jacket over time, especially under wind vibration.
- Pull points. Wherever wire is pulled around a corner or over an edge during installation, the tension concentrates stress. Over repeated install/remove cycles, the jacket wears thin at these points.
- Storage damage. Tightly wound strings stored with kinks create stress points in the conductor. Loosely stored strings in bins avoid this.
What you see: A dead section of a string (conductor break), blown GFCI trips (damaged jacket allowing moisture to create a ground fault), or visible jacket cracking/discoloration at stress points.
Prevention:
- Never use staples. Clips only. This is a professional installation standard, not a suggestion.
- Run wire through protective conduit or split loom at any point where it crosses a sharp edge.
- Use figure-eight wrapping when storing strings to prevent kinking.
- Inspect all wire at pull points and edge crossings during pre-season setup.
#3: Socket and Bulb Base Contact
In stringer-wire systems (C7/C9 with replaceable screw-in bulbs), the socket-to-bulb interface is a mechanical connection that degrades with use.
What degrades:
- Socket contact tension. The phosphor bronze or brass contacts inside the socket that grip the bulb base lose their spring tension over thermal cycles. The contact becomes loose, resistance increases, and the bulb flickers or goes dark.
- Bulb base corrosion. The aluminum or brass base of the bulb develops oxide buildup in humid environments. This is accelerated in coastal areas with salt air.
- Cross-threading. Bulbs installed in a hurry or by feel in cold weather (gloved hands, low light) can cross-thread in the socket, damaging both the socket threads and the bulb base. Once cross-threaded, the socket never makes reliable contact again.
What you see: Individual bulbs out in a string (while others work), bulbs that flicker in wind (loose contact vibrating), or bulbs that are difficult to remove at takedown (corrosion welding the base to the socket).
Prevention:
- Apply a thin coat of anti-oxidant compound (like Noalox or Penetrox) to bulb bases before installation. This prevents oxidation and eases future removal.
- Hand-start every bulb before tightening. Never force a bulb that does not thread easily.
- Replace any socket where a bulb spins freely or does not grip. A loose socket is a future callback.
#4: Driver Circuit Components
As covered in When LED Goes Wrong, the driver circuit fails before the LED chip. The specific components that fail, in order:
Electrolytic capacitors dry out first, especially in heat. When capacitance drops below the design threshold, the driver can no longer maintain stable DC output. The LEDs flicker or dim.
Solder joints crack from thermal cycling. Every on/off cycle is a temperature swing of 30-50 degrees at the solder joint. After thousands of cycles, micro-cracks develop. Affected joints create intermittent connections.
Rectifier diodes can fail from voltage spikes (lightning, utility switching, motor loads on the same circuit). A failed rectifier either shorts (blowing a fuse/breaker) or opens (dead string).
Prevention: Buy product with quality driver components (see Quality Signals). Use surge protectors on circuits feeding expensive installations. There is no field repair for driver failure -- replacement is the only option.
#5: Lens and Housing Degradation
LED bulb lenses and string housings degrade from UV exposure and environmental exposure over time.
Yellowing. Clear and translucent lenses yellow as UV breaks down the polymer chains. This shifts the light output warmer and reduces brightness. After 3-5 seasons of south-facing exposure, yellowing is often visible.
Clouding. Surface abrasion from wind-blown particles, hail, and handling creates micro-scratches that scatter light. A clouded lens reduces brightness and changes the beam pattern.
Cracking. UV-degraded plastic becomes brittle. Thermal cycling creates expansion and contraction stress. Eventually, cracks form, allowing moisture intrusion that accelerates other failure modes.
Prevention: Store product out of UV exposure between seasons. Replace any bulb with visible yellowing, clouding, or cracks during pre-season inspection. Consider UV-stabilized product for south-facing applications.
#6: Clip and Mounting Hardware
Clips, hooks, and fasteners fail from UV degradation and mechanical fatigue, but they generally outlast the components ranked above them.
Plastic clips become brittle after 3-5 seasons of UV exposure. They snap during installation rather than flexing. The solution is simple: budget for clip replacement on a 3-year cycle, or invest in UV-stabilized or stainless steel clips from the start.
Adhesive mounts lose adhesion over thermal cycling and UV exposure. Expect to reapply adhesive mounts every 1-2 seasons. For permanent installations, mechanical fasteners are more reliable.
More detail on clip selection in Clips, Hooks & Fasteners.
Building a Maintenance Schedule
Based on this failure hierarchy, here is a practical maintenance and inspection schedule:
Before every season:
- Power-test every string on the ground. Check for dead bulbs, flicker, color shift, and dim sections.
- Inspect all connectors for corrosion or discoloration. Clean or replace as needed.
- Check wire jacketing at all known stress points. Replace damaged strings.
- Test all GFCI outlets.
Mid-season (after first major weather event):
- Drive by installations and check for dark sections.
- Check that connections remain sealed and elevated.
- Verify timers and controllers are functioning.
After every season (at takedown):
- Note any bulbs, strings, or connections that need replacement for next year.
- Clean connector pins with a brass brush or contact cleaner before storage.
- Store product in a climate-controlled space, loosely coiled.
Key Takeaways
- Connectors fail first and cause more callbacks than any other component -- dielectric grease, tape wrapping, and elevation from surfaces are your primary prevention tools
- Wire damage from installation handling (staples, sharp edges, pull points) is the second most common failure and is entirely preventable with proper technique and clip-only attachment
- Socket contact degradation in stringer systems is prevented with anti-oxidant compound on bulb bases and careful hand-threading
- A pre-season ground test of every string catches 90% of failures before they become 30-foot-up problems
What's Next
Now that you know what fails, let's understand why -- the material science behind fixture degradation.
Next: Why Fixtures Fail: UV, Heat, and Material Science
